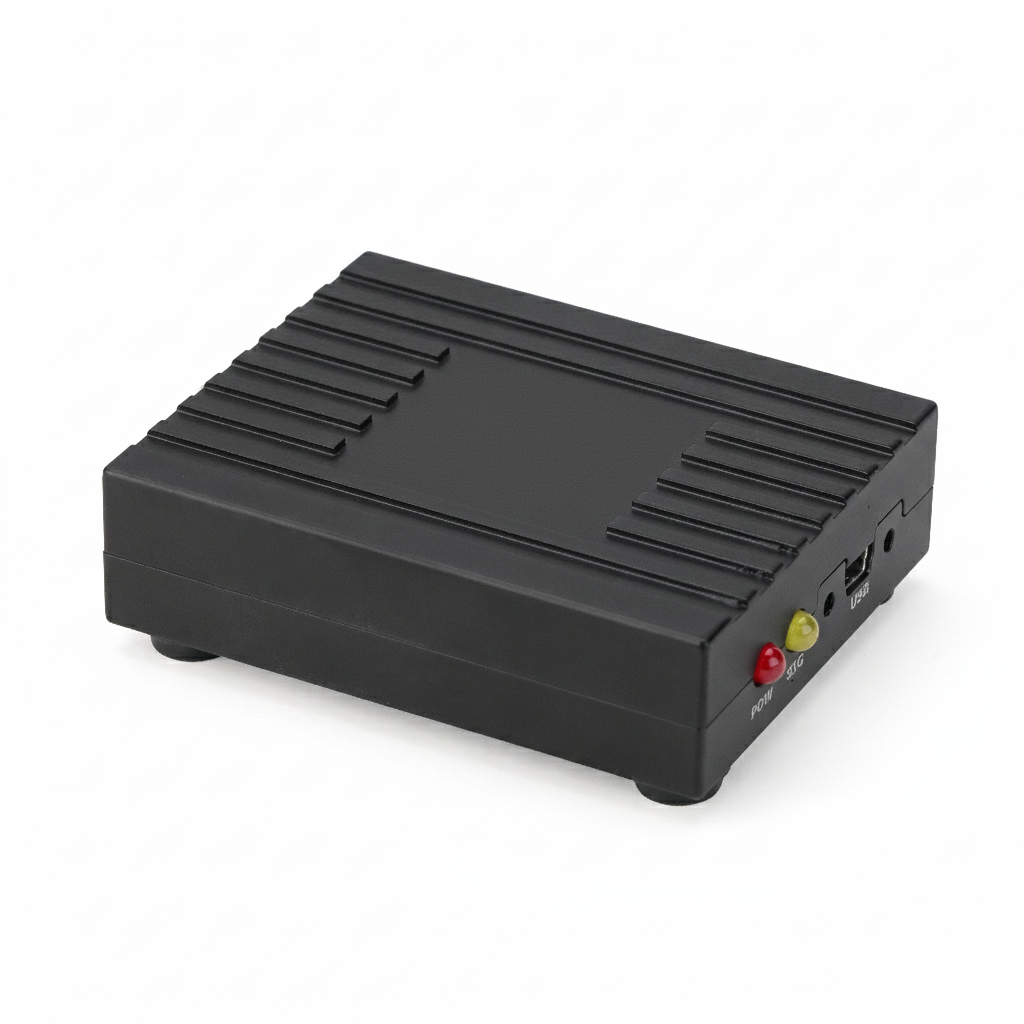

BPS module is the basic and smallest product of the family. It has a powerful GPS/GLONASS receiver that getting data from 10 to 50 Hz with high level accuracy. There are 3 different BPS modules with different update rates.

The BPS module is the most compact and fundamental member of the family, equipped with a powerful GPS/GLONASS receiver to provide highly accurate positioning data. It supports update rates from 10 Hz up to 50 Hz, with three different module options available to meet varying user requirements. The module enables precise GPS/GNSS data logging, as well as measurement of distance, velocity, and positioning. Each package includes a GPS/GNSS antenna and a USB cable for easy setup and operation.

Features

  • Accurate GPS/GNSS data logging

  • Distance, Velocity, Positioning

  • GPS/GNSS antenna and USB cable included

Applications

  • Vehicle tracking and fleet management

  • ADAS and autonomous driving applications

  • Mobile mapping and GIS data collection

  • Industrial asset tracking and IoT solutions

  • Timing and synchronization systems

  • UAV/Drone navigation

  • Sports and outdoor tracking devices

  • Structural health monitoring and geophysical research

  • Automotive and high-dynamic test measurements

  • Environmental Testing
ProductsBPS-10 BPS-25 BPS-50
Update Rate10 Hz25 Hz50 Hz
Accuracy (RMS) 0,05 m/s 0,05 m/s 0,08 m/s
Horizontal Accuracy 2,5 m 2,0 m 1,7 m
Hot Start <1 sec.><2 sec.> <2 sec.>
Cold Start 26 sec.26 sec.25 sec.

Our signature product.

Made with care and unconditionally loved by our customers, this signature bestseller exceeds all expectations.

 Shop now

Units  Heading Accuracy  Operating Temperature  Maximum Velocity
Km/h  0,3 Degrees  -40 °C to + 85 °C 500 m/s

Interface  Operating Voltage Supported Navigation System Dimensions Weight (without cable)
USB USB Powered GPS, GLONASS,Galileo 92,71*64,2*21,66 mm 132 g

Units  Heading Accuracy  Operating Temperature  Maximum Velocity
Km/h  0,3 Degrees  -40 °C to + 85 °C 500 m/s

Interface  Operating Voltage Supported Navigation System Dimensions Weight (without cable)
USB USB Powered GPS, GLONASS,Galileo 92,71*64,2*21,66 mm 132 g
