VPS incorporates a high-precision GPS module that delivers

data at frequencies between 10 and 50 Hz.

VPS incorporates a high-precision GPS module that delivers data at frequencies between 10 and 50 Hz. It supports communication through CAN and USB interfaces with various devices and vehicles. The unit also provides a PPS (pulse-per-second) output for timing synchronization, along with an analog voltage output reflecting vehicle speed.

Features

  • Accurate GPS data logging

  • Navigation update rate:10, 25, 50 Hz Distance

  • USB Interface output

  • CAN Interface output

  • CAN Bus Controller integrated in MCU

  • Fully ISO 11898-compliant

  • Supports CAN 2.0A

  • Bit rate detection 500k Baud

  • PPS (Pulse Per Second)

  • Analog Out

  • Analog voltage Output relative to speed

  • Accelerometer (in CAN)

  • MEMS Capacitive,Triaxial, ±8g

  • Power supply

  • Power with USB or CAN

  • Power with external 12v supply

  • Single GNSS antenna with heading, pitch and roll

Applications

  • Automotive Testing & Validation

  • Transportation & Fleet Monitoring

  • Industrial & Mobile Machinery

  • Research & Development (R&D)

Our signature product.

Made with care and unconditionally loved by our customers, this signature bestseller exceeds all expectations.

 Shop now

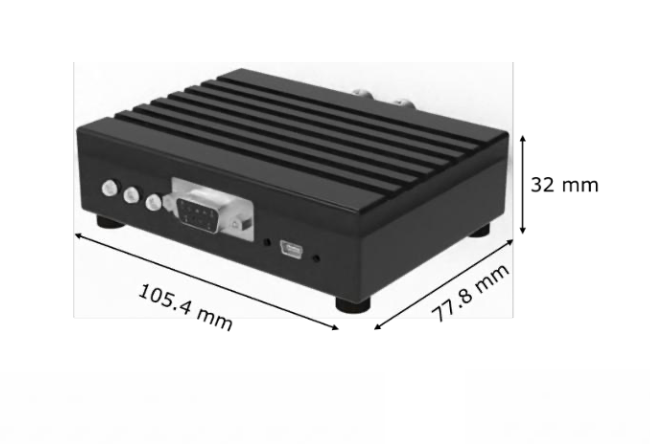

Technical Drawing

Products  VPS-10  VPS-25 VPS-50
Update Rate 10 Hz 25 Hz Up to 50 Hz
Accuracy (RMS) 0,05 m/s 0,05 m/s 0,08 m/s
Horizontal Accuracy 2,5 m  2,0 m  1,7 m
Hot Start <1 sec.> <2 sec.>  <2 sec.>
Cold Start 26 sec.  26 sec.  26 sec.

Units  Heading Accuracy  Operating Temperature  Maximum Velocity
Km/h  0,3 Degrees  -40 °C to + 85 °C  500 m/s

Products  VPS-10  VPS-25 VPS-50
Update Rate 10 Hz 25 Hz Up to 50 Hz
Accuracy (RMS) 0,05 m/s 0,05 m/s 0,08 m/s
Horizontal Accuracy 2,5 m  2,0 m  1,7 m
Hot Start <1 sec.> <2 sec.>  <2 sec.>
Cold Start 26 sec.  26 sec.  26 sec.

Units  Heading Accuracy  Operating Temperature  Maximum Velocity
Km/h  0,3 Degrees  -40 °C to + 85 °C  500 m/s

Supported Navigation Systems Operating Voltage  Interface  Dimensions Weight (without cable)
GPS, GLONASS,Galileo Car Lighter USB  107,4*104.2*27,3 mm  267 gr.

Supported Navigation Systems Operating Voltage  Interface  Dimensions Weight (without cable)
GPS, GLONASS,Galileo Car Lighter USB  107,4*104.2*27,3 mm  267 gr.
