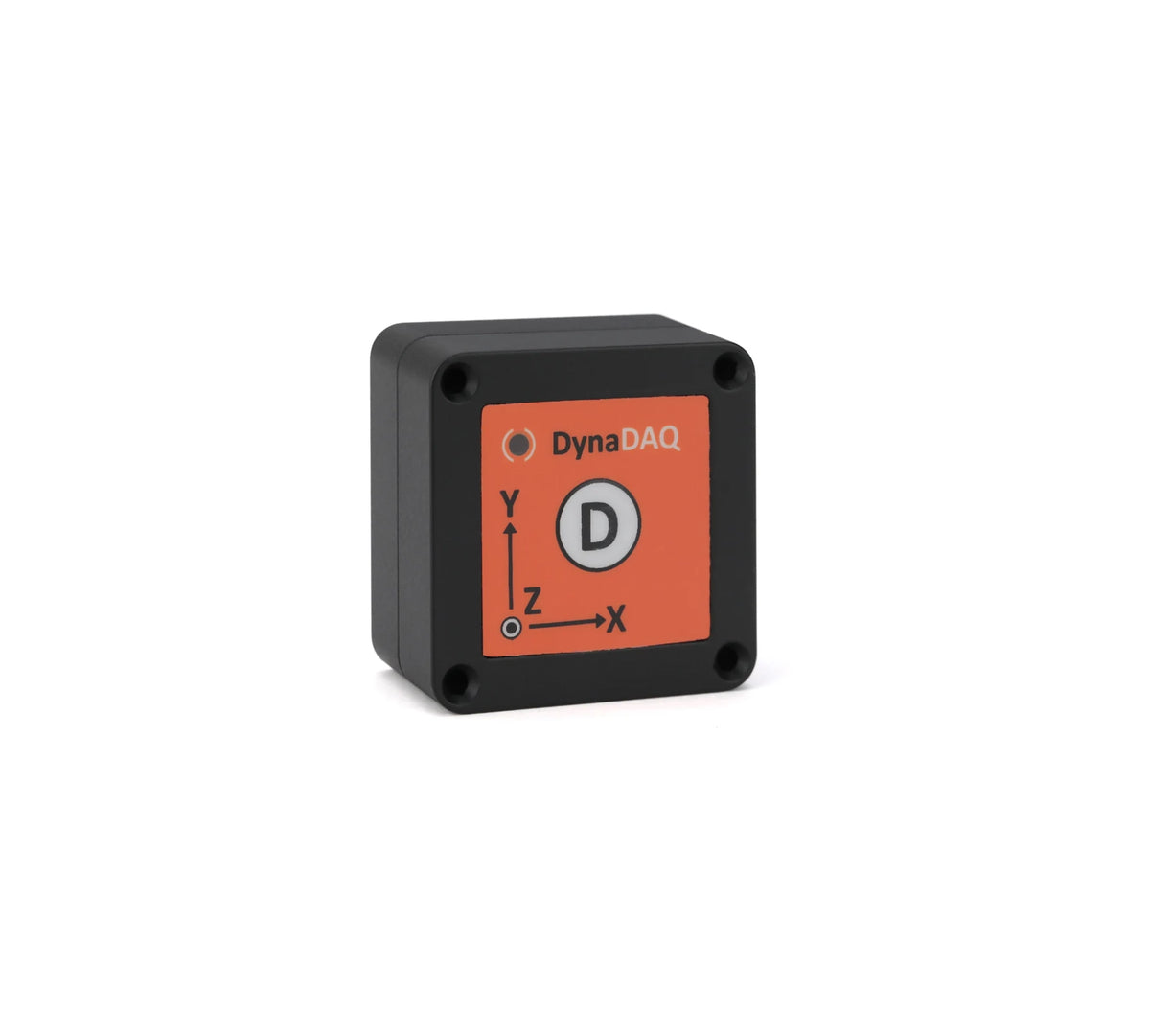

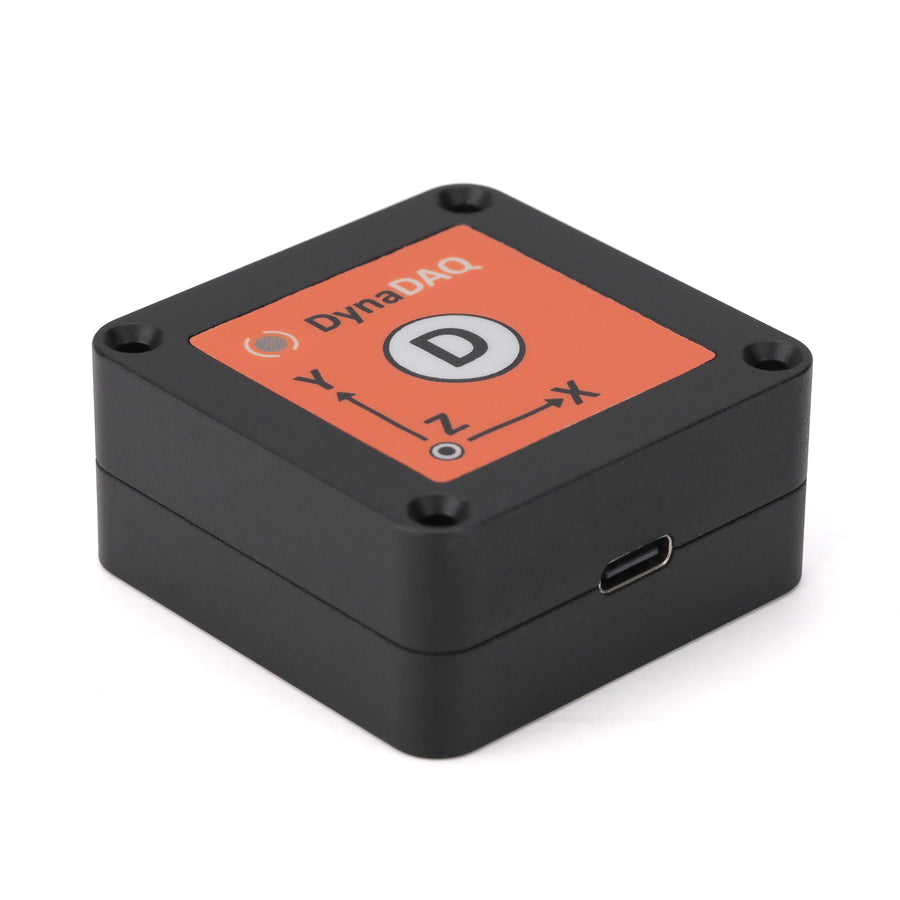

VR is a triaxial vibration recorder with integrated environmental sensors.

Offering selectable measurement ranges up to ±40 g and a wide frequency response, it ensures
accurate data collection for diverse testing needs.

VR is a triaxial vibration recorder with integrated environmental sensors.

Offering selectable measurement ranges up to ±40 g and a wide frequency response, it ensures
accurate data collection for diverse testing needs.

Features

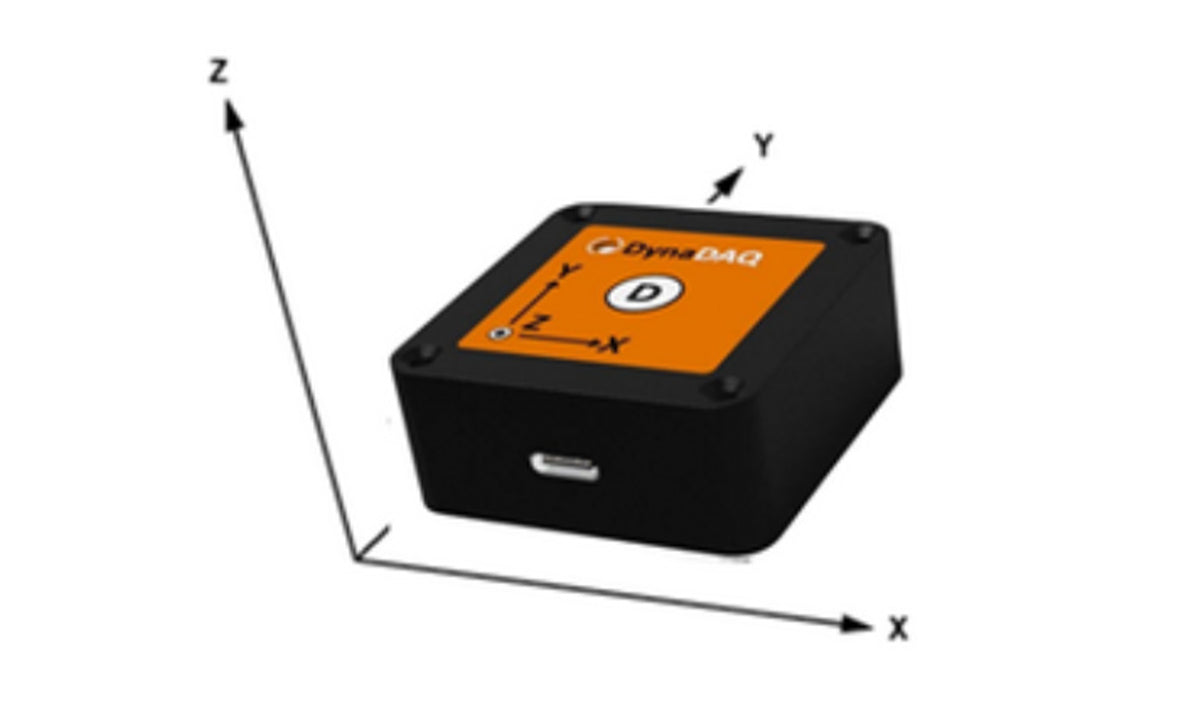

  • Triaxial MEMS Capacitive Accelerometer

  • Resolution: 20-bit

  • Sample Rate: 15 to 4000 SPS (Customize)

  • Measurement Range: ±10, ±20, ±40 g

  • Frequency Range (±5 %): DC to 535 Hz

  • Frequency Range (±10%): DC to 620 Hz

  • Frequency Range (3dB): DC to 950 Hz

  • Housing material: Aluminum/Stainless Steel

  • Length 48 mm* (1.88")

  • Width 48 mm* (1.88")

  • Thickness 22 mm (0.86")

  • Ingress Protection IP50 (Dust Protected)

  • Battery: 800 mAh

  • Storage: 16 GB

Applications

  • Vibration Sensing & Recording

  • Shock & Impact Testing

  • Shipping & Transport Monitoring

  • Wi-Fi Enabled Wireless Monitoring

  • Environmental Testing

Recording Modes

Sampling RateStorage CapacityContinuous Recording ModeTrigger Recording Mode
15 Hz100 days23 hours60 hours
15 Hz100 days23 hours60 hours

Our signature product.

Made with care and unconditionally loved by our customers, this signature bestseller exceeds all expectations.

 Shop now

Intentional design

We create with intention. Our products solve real problems with clean design and honest materials.

Quality first

We obsess over the details and strive to deliver the best products at the best prices, every time.

Customer care

We're always on your side: keeping our loyal customers happy is our top priority and number one goal.

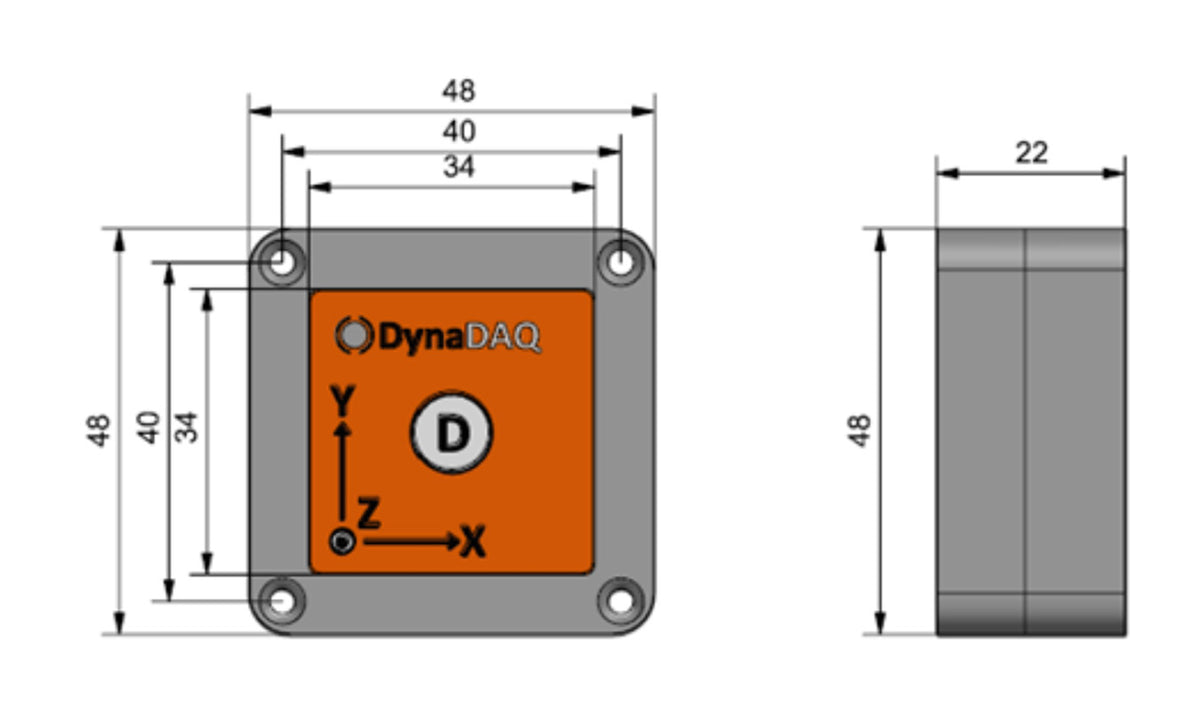

Technical Drawing

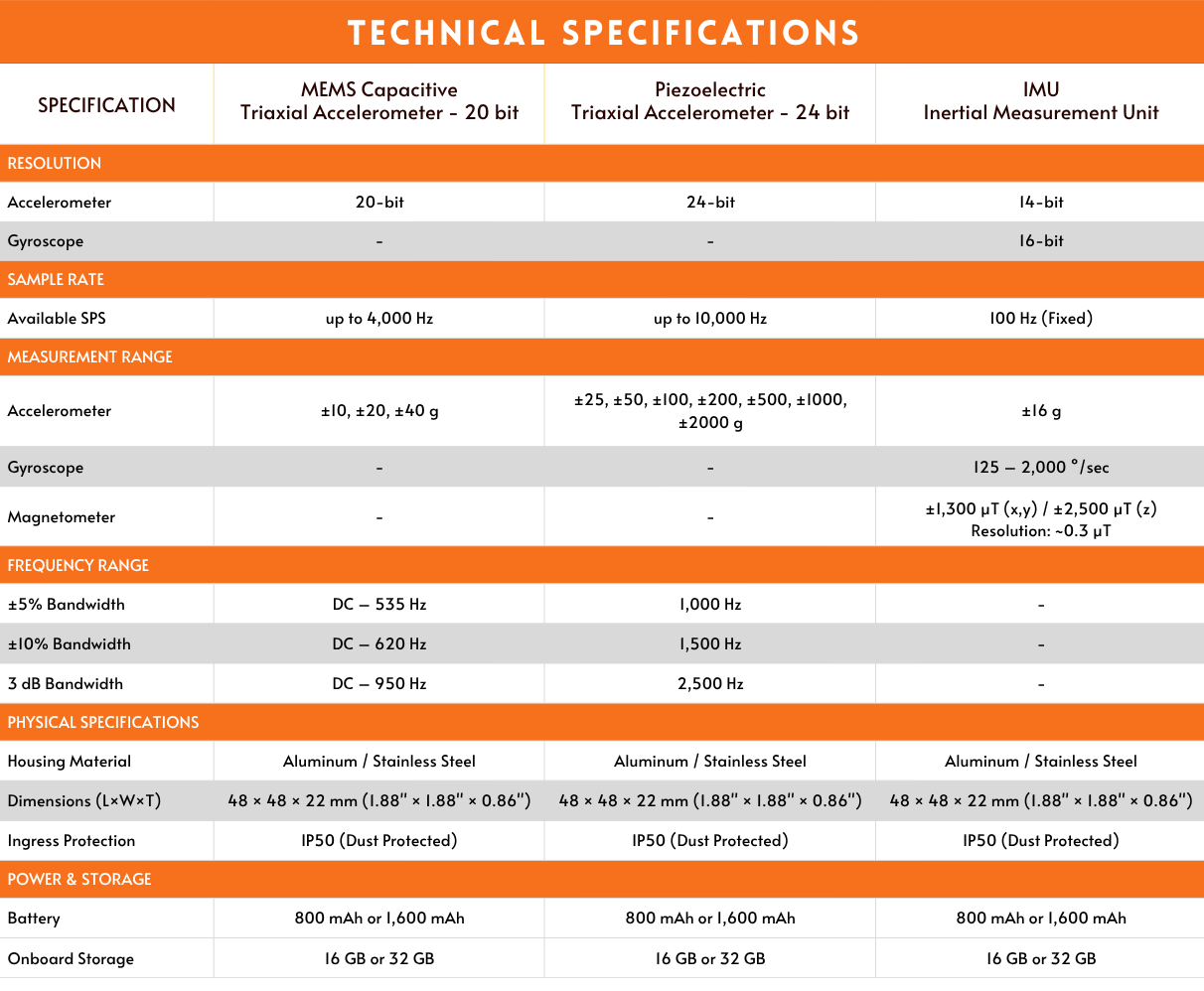

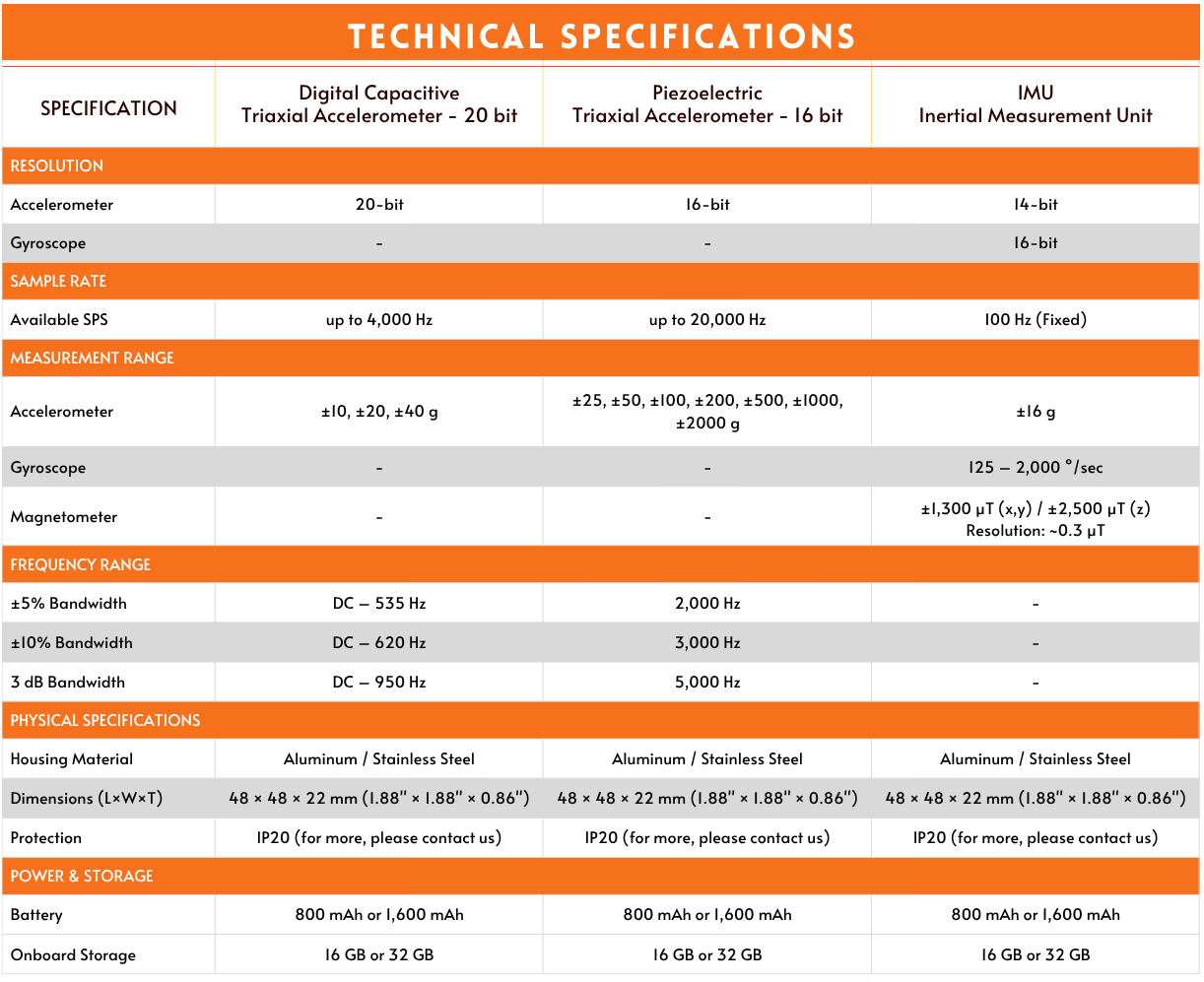

Full-Scale Acceleration (g) ±10 ±20 ±40
Sensitivity (LSB/g) 51200 25600 12800
Scale Factors (μg/LSB)  19,5 39 78
Sensitivity(Change/°C) (%/°C)  ±0.01  ±0.01  ±0.01
0 g Offset (mg)  ±125 ±125 ±125
Noise (μg/√Hz)  75 85 90
Non-Linearity (%)  0,1  0,5  1,3
Resoulution (1LSB) (μg)  20 40  80

Sample per second (SPS)  Low-PassFilter (Hz)
3,90625 0,97
7,8125  1,9
15,625  3,9
31,25  7,81
62,5  15,62
125 31,25
250 62,30
500 125
1000 250
2000 500
4000 1000

Storage Battery Operating Temprature Shock Limit
16 GB 800 mAh -40ºC to +85ºC 5000 g

Ingress Protection  Resolution Mounting Housing Material Weight (wo cable)
IP50 (Dust Protected) 20-bit Adhesive or Screw Aluminum / Stainless Steel 75 g
